Overview
This machine is mainly used for the transfer and feeding of solid materials in the pharmaceutical industry. It can be used in conjunction with boiling granulators, boiling dryers, and granulators. It is widely used in industries such as pharmaceuticals, chemicals, and food.

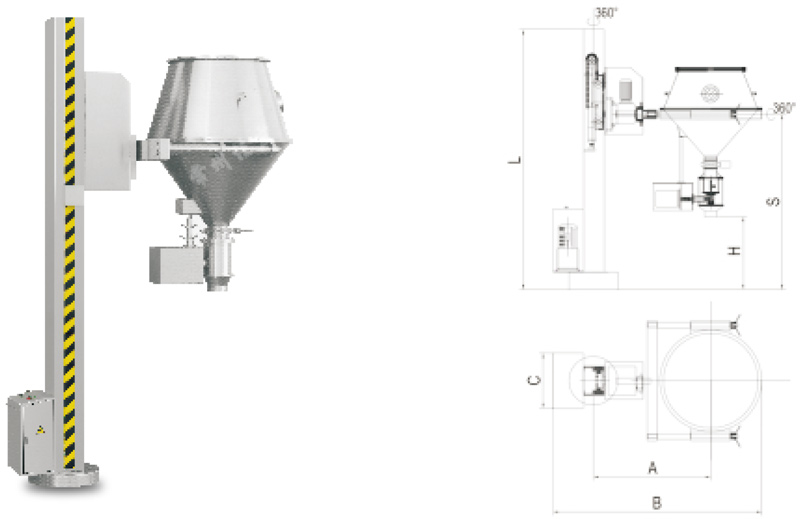

Project specifications | NTFZ-200 | NTFZ-300 | NTFZ-500 | NTFZ-800 |
S | 3210 | 3210 | 3400 | 3400 |
H | 850 | 850 | 850 | 850 |
L | 3500 | 3600 | 3750 | 3850 |
A | 1080 | 1180 | 1400 | 1500 |
B | 2260 | 2460 | 2850 | 2950 |
C | 750 | 750 | 750 | 750 |
Max Load(Kg) | 200 | 300 | 500 | 800 |
Power(Kw) | 2.95 | 3.7 | 5.2 | 6 |
Weight(Kg) | 900 | 1100 | 1400 | 1600 |
All parameters are for reference only, and our company has the right to make changes based on the material situation without prior notice.
